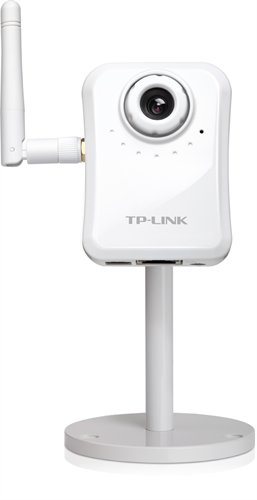

TP-Link TL-SC3230N Vezeték nélküli H.264 IP kamera

CAMERA
Image Sensor 1/4" Progressive scan CMOS sensor
Resolution 1.3 Megapixel (1280 x 1024)
Lens F: 1.8, f: 4.3 mm
Viewing Angle Horizontal 47°
Digital Zoom 10x Digital
Minimum Illumination 0.5 Lux
VIDEO/IMAGE
Video Compression H.264, MJPEG
Frame Rate & Resolutions Max. 30 fps at 1280x1024 (SXGA), 1280x720 (HD 720)
Max. 30 fps at 640x480 (VGA), 320x240 (QVGA)
Video Streaming Simultaneous MJPEG, MPEG-4, H.264 and 3GPP (Dual streaming)
Controllable Frame rate and bandwidth
Support Unicast and Multicast
Support 3GPP/ISMA RTSP (Real Time Streaming Protocol)
Image Settings Rotation: Mirror, Flip, Mirror Flip
Configurable brightness, contrast, saturation
Overlay capabilities: time, date, text and privacy image
AUDIO
Audio Communication 2-Way full duplex
Audio Input Built-in microphone
Audio Output Audio line output connector for external speaker
Audio Compression G.711 µ law, a law, and AMR
ALARM AND EVENT MANAGEMENT
Input Trigger Motion detection, audio detection, schedule and network link down
Notification Method E-mail, Micro SD card, NAS, FTP
NETWORK
Standards and Protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP,3GPP/ISMA RTSP
Security Multiple password-protected user levels
HTTPS encryption
IP filter
WIRELESS
Wireless Data Rates IEEE 802.11 b/g/n , Up to 150Mbps
Frequency 2.4-2.4835GHz
Wireless Transmit Power <20dBm (EIRP)
Wireless Encryption WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
INTERFACES
Network Interface RJ-45 for Ethernet 10/100 Base-T
Power Connector DC power jack
Audio Output 3.5 mm jack for line out
Button Reset push button
Slot Micro SD/SDHC memory card slot
SURVEILLANCE MANAGEMENT
Users 20 simultaneous unicast users
Unlimited number of users via multicast
Bundled Management Software Viewing and recording up to 64 cameras
MINIMUM SYSTEM REQUIREMENTS
Supported Browser Microsoft Internet Explorer 6 or higher
Firefox 2.0 or higher, Safari, Google Chrome
Supported OS Windows 2000/ 2003/XP/Vista/7
GENERAL
External Power Supply 12V DC, Max 12W
Certification CE, FCC, RoHS
Package Contents TL-SC3230N
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Camera Mount Kit
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C ~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions( H X W X D ) 2.9*2.1*1.4 in (74.5*54.3*34.7mm)
