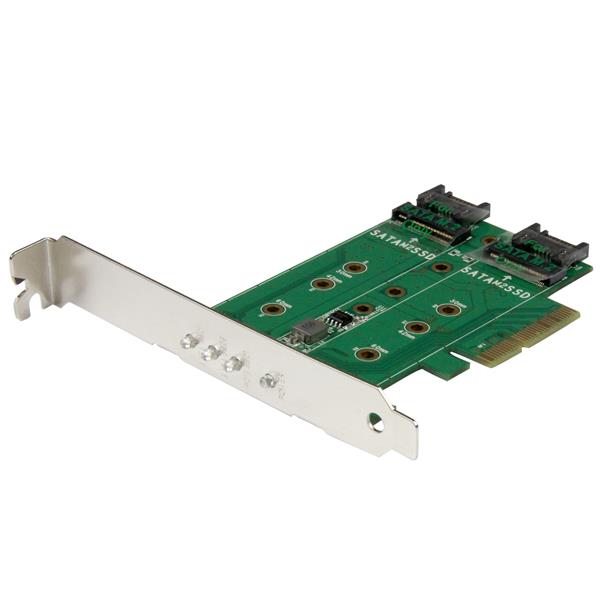

Startech 3PT PCIe x4 bővítőkártya - 1 x M.2 PCIe SSD / 2 x M.2 SATA SSD
- Azonosító: #334571
- Model#: PEXM2SAT32N1
- Frissítve: 19 perce
- StarTech
- PCI-e kártya
- PCI Express
Külső raktáron
24 hónap jótállás
22 820 Ft
17 969 Ft + Áfa
Startech 3PT PCIe x4 bővítőkártya - 1 x M.2 PCIe SSD / 2 x M.2 SATA SSD termék leírása
Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD
Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and up to 6Gbps for M.2 SATA III drives)
Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs
OS independent with no drivers required, for a fast, hassle-free setup
Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers
Installs into x4, x8, or x16 PCIe slots
Hardware Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Industry Standards Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps) PCI Express 3.0 Interface M.2 SATA (NGFF) SATA M.2 PCIe (NVMe) Port Style Integrated on Card Ports 3 Performance ATAPI Support Yes Bootable Yes MTBF 50,000 Hours Port Multiplier No RAID No Type and Rate SATA III (6 Gbps) Connector(s) Connector Type(s) 1 - PCI Express x4 Male Internal Ports 3 - M.2 (NGFF, B-Key) Receptacle 2 - SATA (7 pin; Data) Plug Software OS Compatibility OS Independent; No additional drivers or software required
Note: When installed in a compatible operating system, the card is natively supported and doesn’t require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).Special Notes / Requirements Note The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane. System and Cable Requirements A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot One or two SATA host ports on the host computer (for example, the SATA controller card, or the motherboard SATA ports inside of your computer) An operating system that natively supports PCIe SSDs (NVMe), such as:
- Windows® 7 and later
- Mac OS 10.10.3 and laterIndicators LED Indicators 3 - M.2 drive status/activity 1 - Power Environmental Humidity 20%~80% RH (Non-condensing) Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Physical Characteristics Product Height 120 mm [4.7 in] Product Length 120 mm [4.7 in] Product Weight 46 g [1.6 oz] Product Width 20 mm [0.8 in] Packaging Information Shipping (Package) Weight 122 g [4.3 oz] What's in the Box Included in Package 1 - 3-port M.2 NGFF SSD adapter card 1 - low-profile bracket 3 - M.2 mounting screws 3 - M.2 mounting standoffs 3 - M.2 mounting nuts 1 - screwdriver 1 - quick-start guide
Startech 3PT PCIe x4 bővítőkártya - 1 x M.2 PCIe SSD / 2 x M.2 SATA SSD műszaki adatai
Típus | PCI-e kártya |
Csatlakozó felület | PCI Express |
Súly (bruttó) | 0.12 kg |
